Terrestrial

UHF ANTENNA NEO CHANNELS 21/60, G = 16dB

Discontinued product

Code 9000107

Model NEO-046

Serie 900

Description
Antennas for optimal reception of DTT channels, with high gain (16 dBi). Designed to cover the UHF band up to 790 MHz while rejecting the LTE mobile telephone band. Easy to mount and adjust, providing maximum robustness and ensuring complete safety of installation. With a stylish design which perfectly reflects the excellent electrical and mechanical qualities of the antenna.

Applications
Digital and analogue terrestrial TV installations, collective or individual, where rejection of the LTE band is necessary and high gain and directivity are required. The reflectors prevent interference produced by the signals received from the rear of the antenna.

Characteristics
Rejection of LTE and GSM signals. Manufactured in aluminium, zamak, weather-resistant plastic and galvanised steel.. Watertight matching transformer casing (IP55). Matching transformer, with F-type connector, protected inside the casing. No tools required for installation. Supplied in an individual pack.

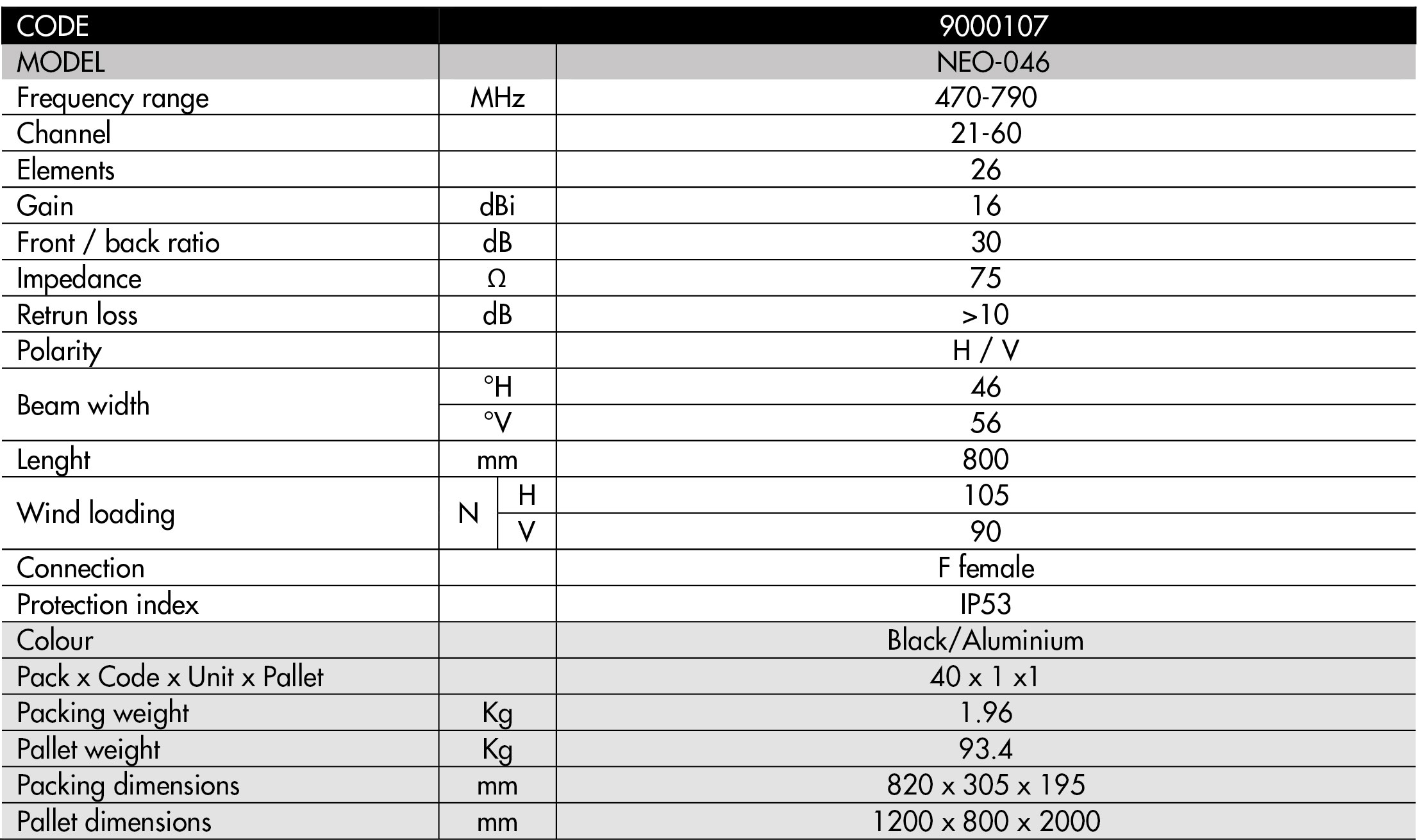

Technical specifications
