Multiswitches
9X16 CASCADABLE MULTISWITCH
Kod 9130331
Model ML-0916
Seriler 913
Description
Cascadable multiswitches for 8 polarities and terrestrial TV with 16 outputs. The outputs are amplified in the satellite IF band. Need to be powered from each individual receiver so that the switching and amplification of each derived output will function.
Applications
Medium-sized collective satellite and terrestrial TV installations. It is essential that they be mounted along with end multiswitches, so as to obtain distributions of up to 64 outlets on a single line if they are installed with intermediary amplifiers.

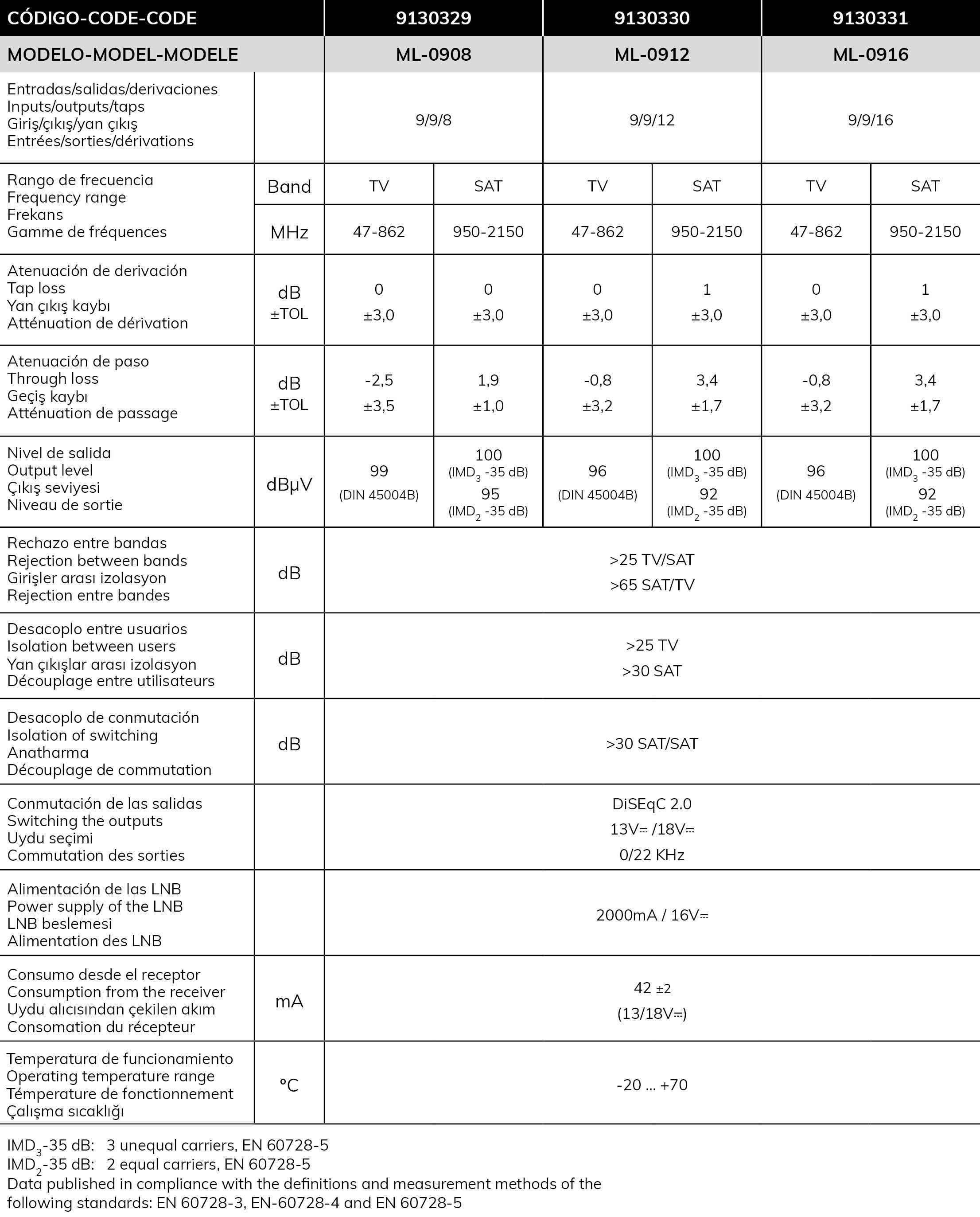

Characteristics
Shielded metal chassis with plastic supports. F-type connectors. Earthed.
