Multiband amplifiers
AMPL 2xUHF-BIII-BI/FM LTE800/700 EVEREST
Discontinued Product
Kod 9040138
Model CA-664
Seriler 904
Description
Broadband amplifier for head-end, with four inputs and different frequency configurations, compatible with the transmission of LTE700 and LTE800 mobile telephone signals. The built-in power supply unit can feed a preamplifiers by means of a switch. Optional external power supply for redundant power. Output test-point to adjust the installation without having to disconnect the TV signal.
Applications
Large-scale digital and analogue MATV installations which are affected by the transmission of LTE700 and LTE800 mobile telephone signals. Suitable for installations where the channels of each band are received at similar levels. Adjustment by means of switches and regulators which control the gain at each input.
Characteristics
Made from zamak and galvanised steel plate to provide maximum shielding. Input and output connectors in the opposite sides to facilitate installation. F-type connectors.
İndirilenler
Teknik özellikler
Klavuzlar
Kataloglar
Sertifikalar
Flyers

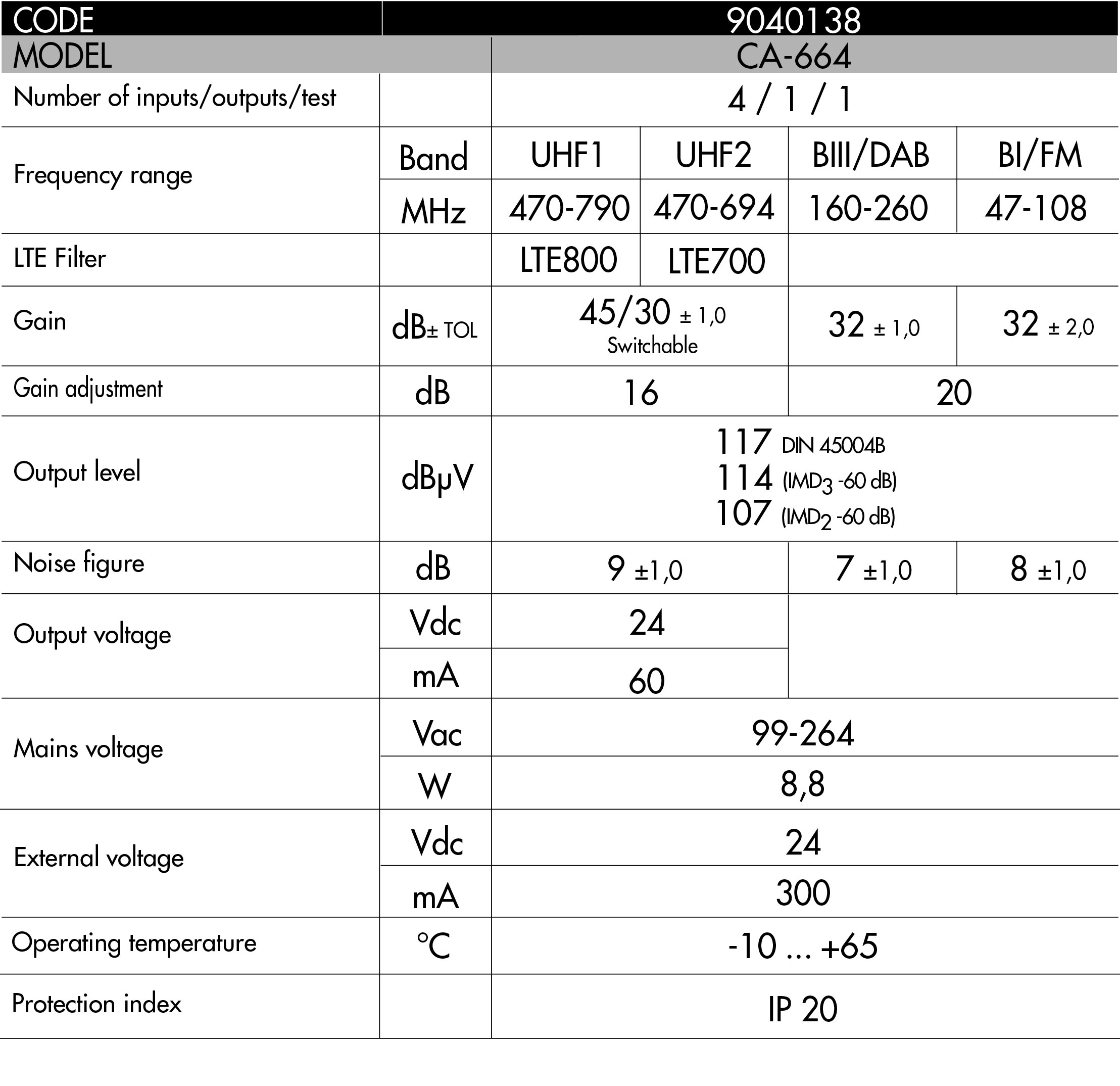

Teknik özellikler
![](https://alcadelectronics.com/uploads/archivos/9040138-tablaEN.jpg)
