Modular amplifiers for terrestrial TV
DVB-S2 2xDVB-T TRANSMOD CI DiSEqC
Kod 9120213
Model TT-312
Seriler 912
Description
Transmodulator of encrypted satellite digital television services to terrestrial digital television with DiSEqC. Each module selects the services of a DVB-S/S2 satellite tr ansponder and incluyes them in 1 or 2 DVB-T channels. Equipped with a Common Interface slot for insertion of the CAM and the su bscribers card. Programmable using PC software and a wireless programmer.
Applications
Collective terrestrial digital televisi on installations where the aim is to distribuye encrypted satellite te levision services while avoiding the installation of satellite receiver s. Allows channels from different satellites to be selected thaks to its DiSEqC control. Compatible with all collective TV installations since the channels can be distributed throughout the terrestrial band.
Characteristics
Automatic error-detection system which greatly reduces maintenance work on the installation. Generated output channels of oustanding quality. Does not include the CAM or the decoder card. Zamak chassis with metal side panels. F-type connectors. The equipment can be assembled quickly and easily.
İndirilenler
Teknik özellikler
Klavuzlar
Kataloglar
Sertifikalar

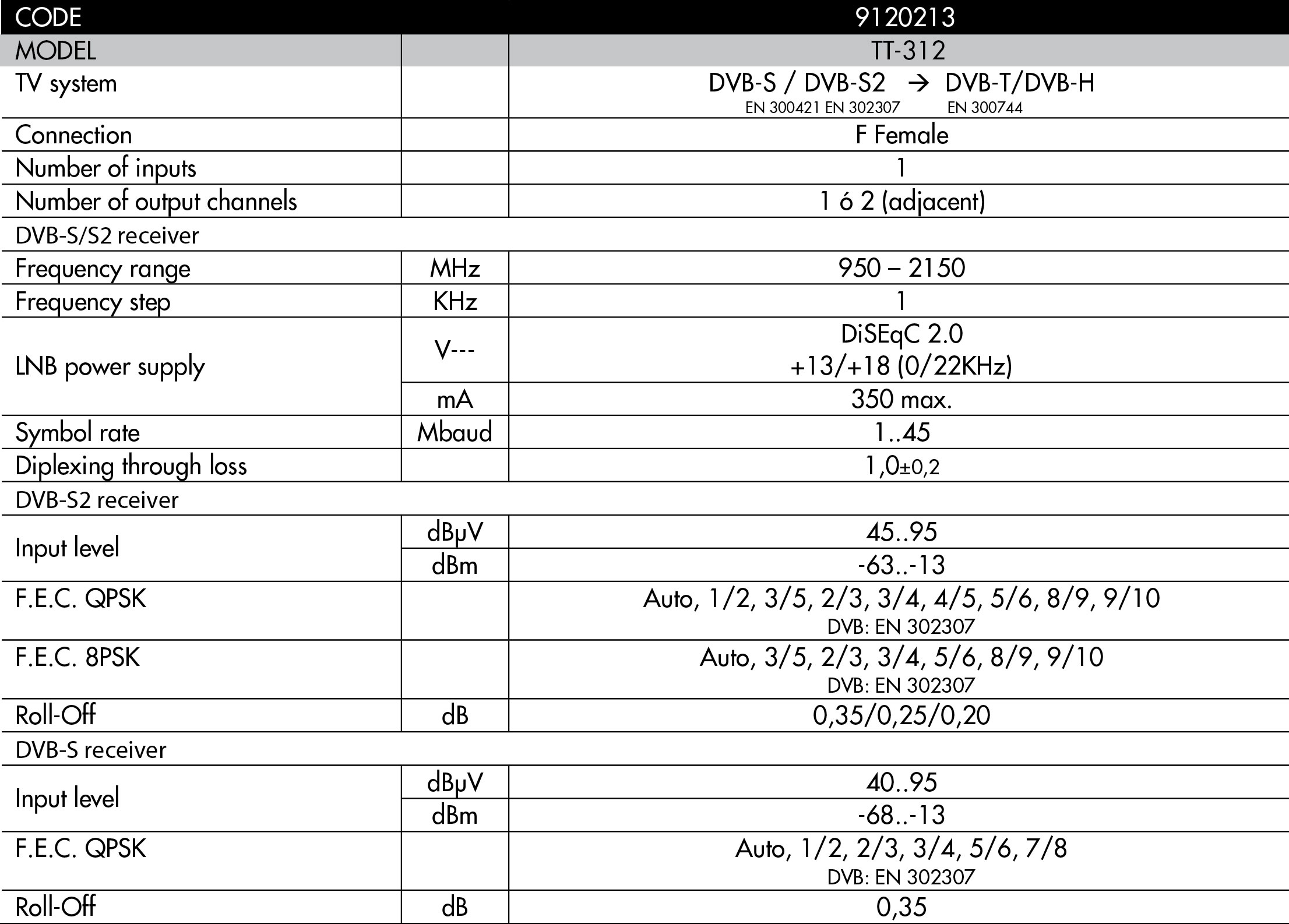

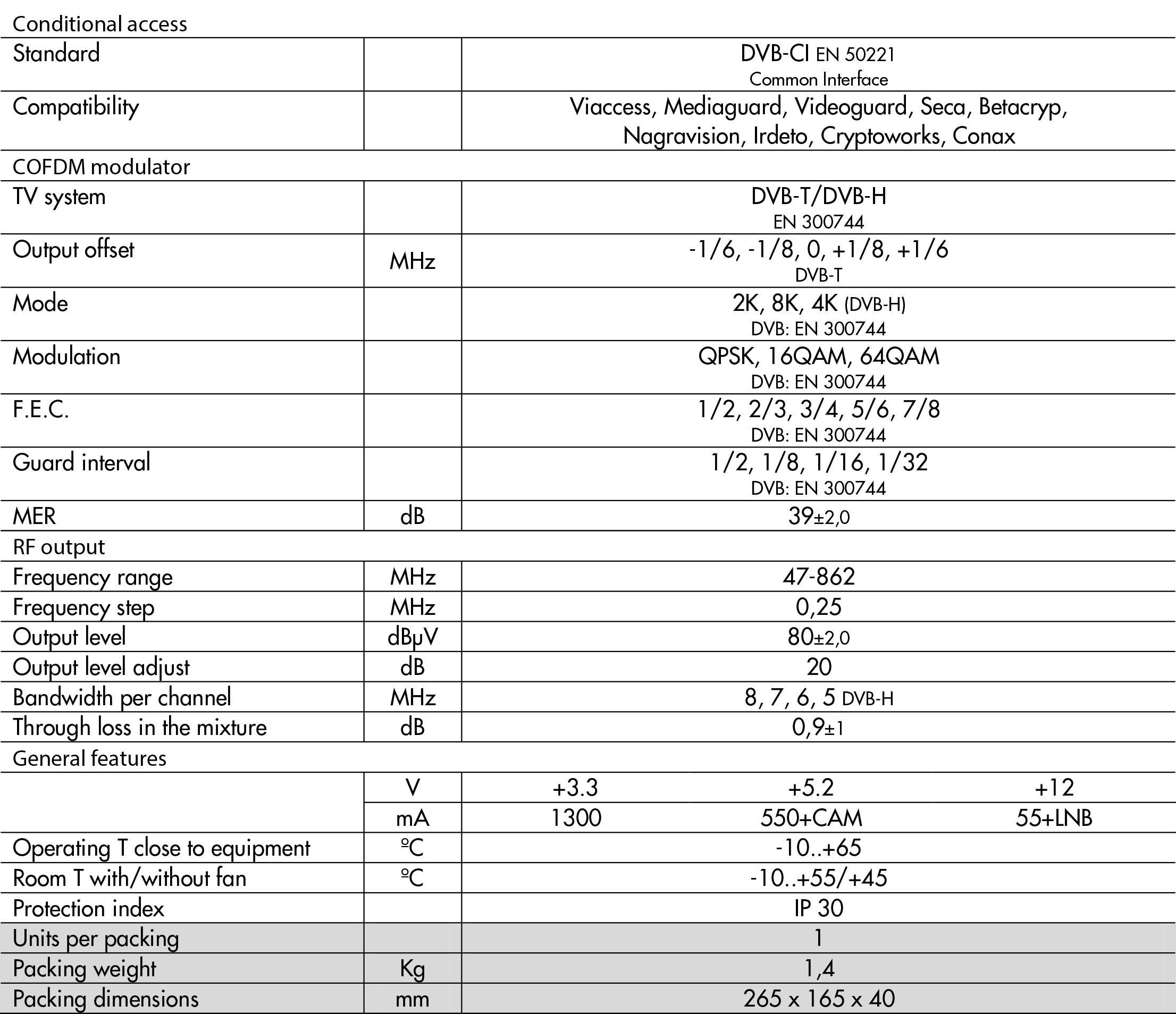

Teknik özellikler
![](https://alcadelectronics.com/uploads/archivos/9120213-tablaEN_a.jpg)
![](https://alcadelectronics.com/uploads/archivos/9120213-tablaEN_b.jpg)
