Modular amplifiers for terrestrial TV
DOUBLE IF PROCESSOR CONFIGURABLE 1/2 INP
Discontinued Product
Kod 9120154
Model UC-233
Seriler 912
Description
Modular IF processor equipment with analogue LNB switching. The equipment converts the frequency of the satellite digital TV transponders to the IF band. It is composed of a power supply unit, an amplifier and up to 8 processers, which are mounted on a support frame. Can be programmed using PC software and a wireless programmer.
Applications
Medium to large analogue or digital SMATV installations. The equipment permits the distribution of up to 30 transponders, 240 digital programs, of different satellites and polarities, through a single coaxial cable. Compatible with single, twin, quad and multiswitch LNBs thanks to its analogue switching (+13V/+17V 0/22KHz) and with collective installations in the IF band (950 to 2150 MHz). It is necessary to install individual digital DVB-S/S2 receivers with each television.
Characteristics
The equipment equalises the levels of all the transponders and maintains the levels by means of an AGC automatic gain control. Zamak chassis with metal side covers. F type connectors. Fast and easy assembly.
İndirilenler
Teknik özellikler
Klavuzlar
Kataloglar
Sertifikalar

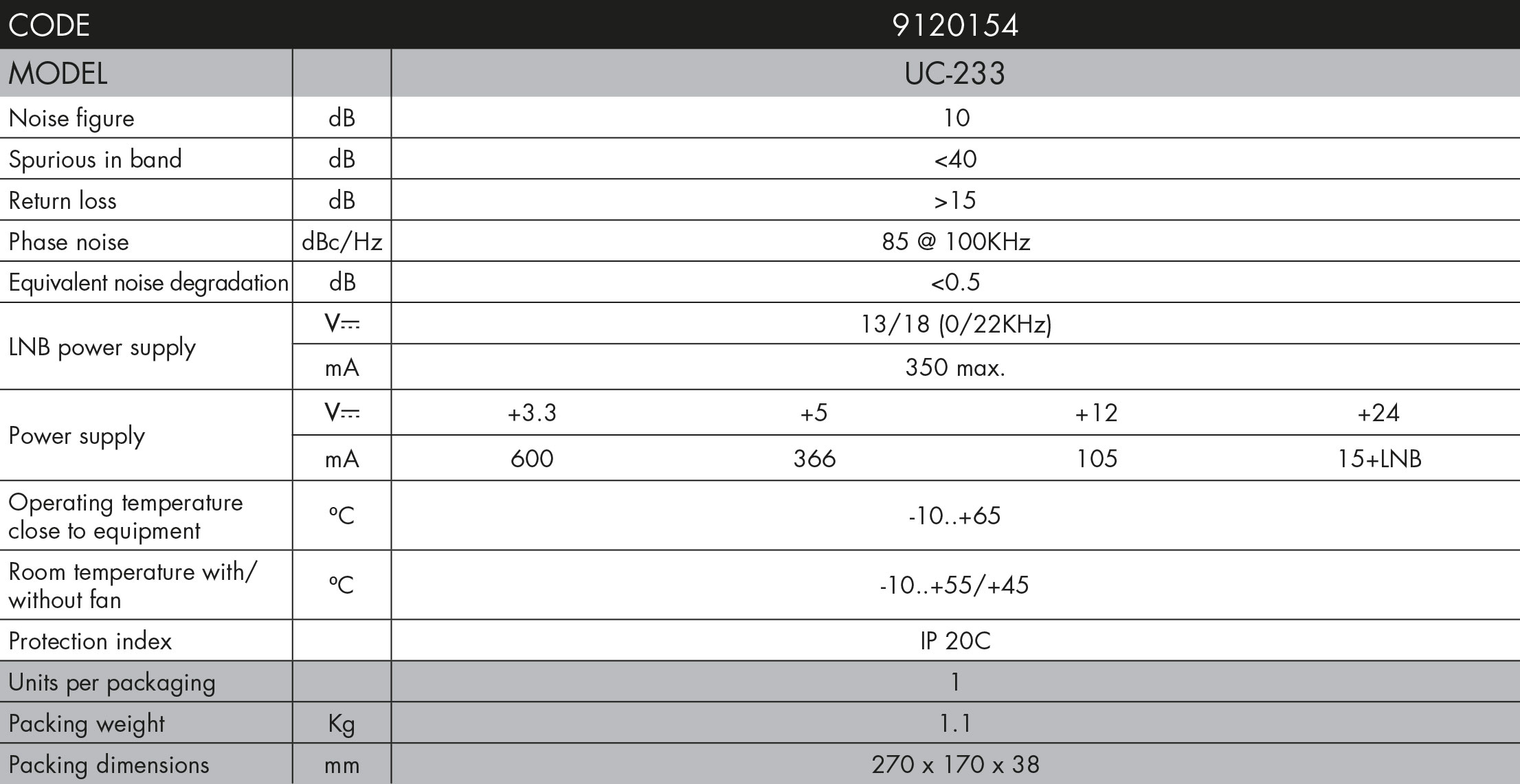

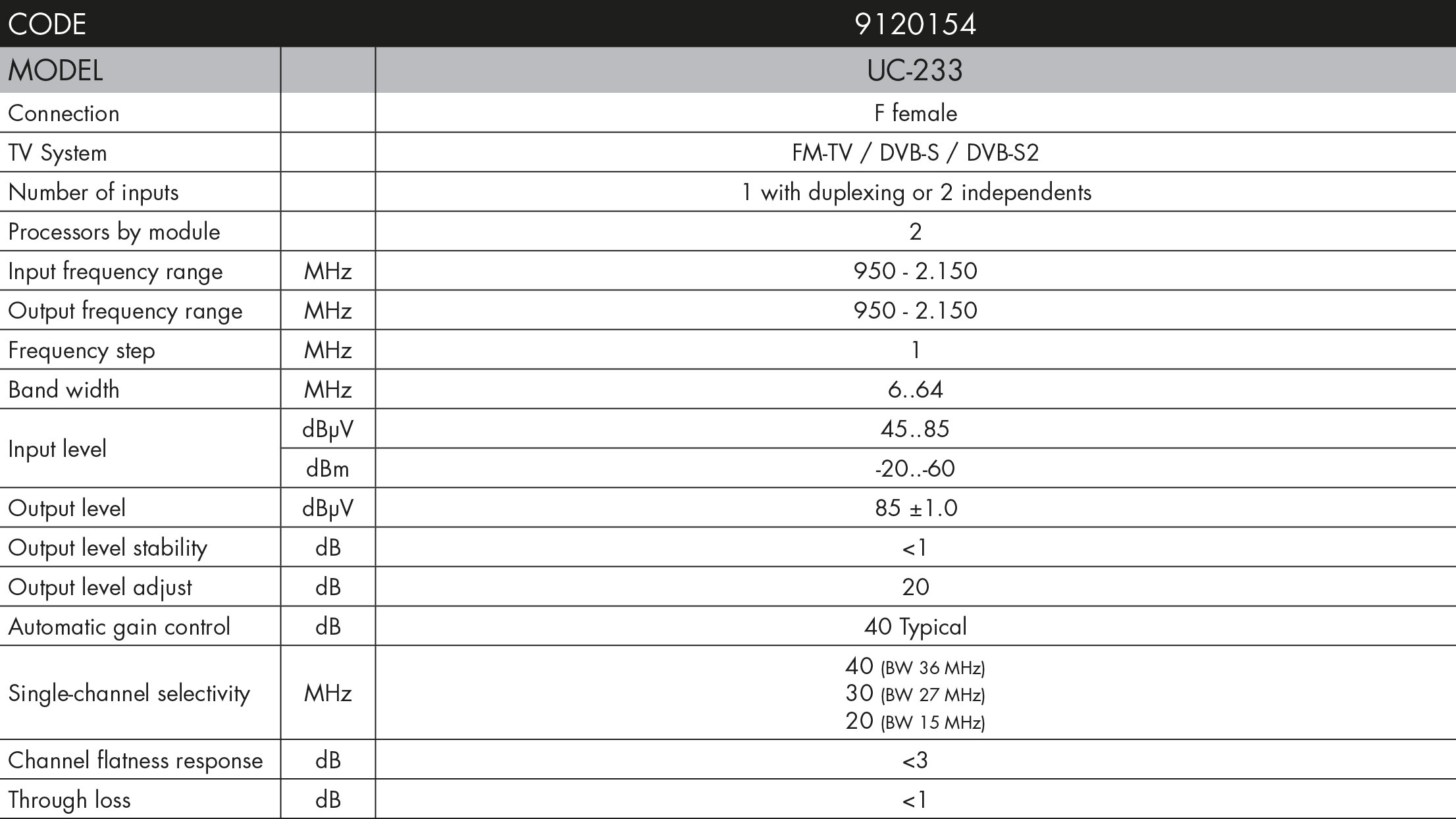

Teknik özellikler
![](https://alcadelectronics.com/uploads/archivos/9120154-tablaEN_a.jpg)
![](https://alcadelectronics.com/uploads/archivos/9120154-tablaEN_b.jpg)
