Modular amplifiers for terrestrial TV

WIDEBAND DTT CHANNEL PROCESSOR

Kod 9050174

Model PC-526

Seriler 905

Description
Channel processor for the UHF and VHF bands, designed to work with adjacent digital and analogue channels. High selectivity and automatic gain control (AGC). Compatible B/G, I, D/K and L standards.

Applications
For use in MATV installations of digital and analogue terrestrial TV where adjacent digital or analogue channels exist with very different levels. By selecting the same input and output channel, the processor works as a filter with AGC, handling the channels independently and eliminating interference. In this way, a perfect equalisation is obtained of all the channels received. By selecting different input and output channels, the processor functions as a programmable digital or analogue channel converter.

Characteristics
Each module consists of an intermediate frequency converter, a double surface acoustic wave filter (SAW) and channel converter. Adjustable frequency for analogue channels in steps of 125KHz. Automatic gain control (AGC) of 40 dB. Permits a feed path to supply power to preamplifiers.

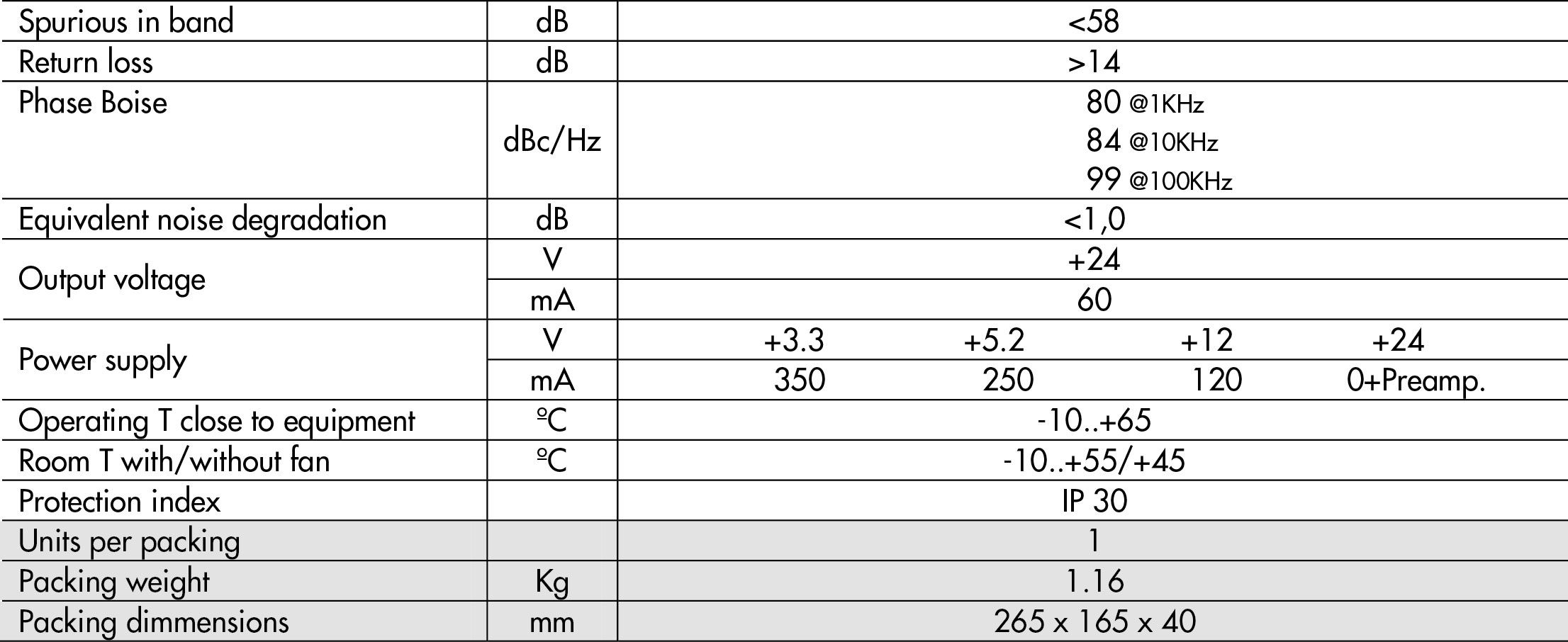

Teknik özellikler
