New Mont Blanc programmable amplifier units: evolution at the installer's service

Developed and manufactured by ALCAD in Spain, meet the new Mont Blanc CAD-824 and CAD-834 programmable amplifier units. With preamplifier power supply and great robustness thanks to their zamak chassis, they are designed to facilitate the installer's work, but without neglecting their aesthetics..

The new Mont Blanc CAD-824 and CAD-834 programmable amplifier units are ideal for individual or collective installations. Both units easily filter, convert and equalise up to 32 terrestrial channels thanks to their 32-digit LCD display with push-button panel and auto-tuning option.

In addition, thanks to the automatic gain control we can obtain a stable output level, which we can adjust according to our needs, without worrying about fluctuations that may occur at the input.

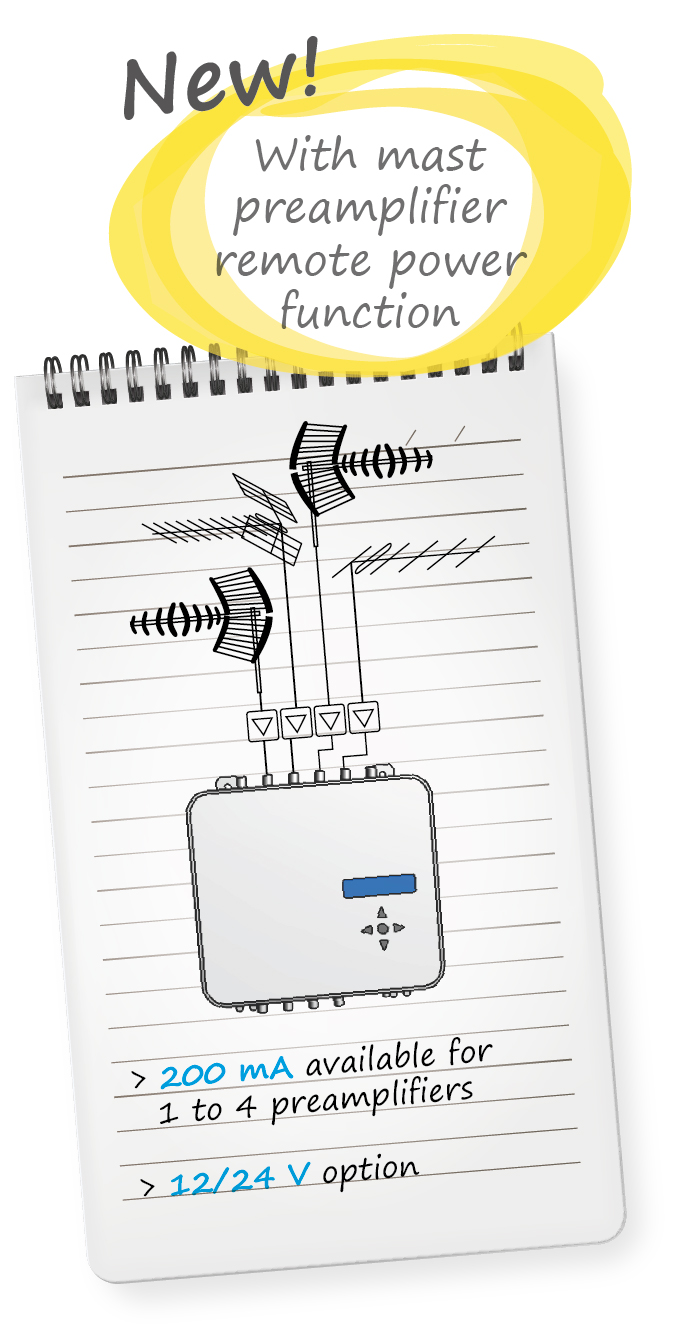

Now with mast preamplifier remote power function

The big novelty of our new Mont Blanc programmable power amplifiers is the mast preamplifier remote power function, with the following features:

• 200 mA available for 1 to 4 preamps.
• 12/24 V option.

ALCAD's programmable power amplifiers: two highly competitive devices

The great advantages of both devices make them two very competitive devices:

• Robust chassis made of zamak. Attractive aesthetics.
• Output power 120dBµV (DIN45004b -60dBc).
• 32 programmable filters.
• LTE700 / No LTE.
• Auto-tuning.
• High selectivity.
• External power supply for easy maintenance, low power consumption.
• 4 UHF/BIII/DAB inputs + 1 FM/BI input.
• Channel conversion.
• Automatic gain control with output level adjustment.
• Extra gain regulation per channel.
• Configurable via 32-digit display and push-button panel.
• Upgradable product thanks to firmware update.

CAD-834 programmable amplifier unit

Regarding the CAD-834 unit, these features are completed with:

• 1 SAT input.
• 1 or 2 outputs: ICT2 compatible.

More than three decades as a world leader in the sector are reflected in two technologically advanced devices, simple to use, intuitive, intelligent and versatile. And most importantly: designed to facilitate the installer's work, with a very neat aesthetic.

Turn them on, program them... and go! It's as simple as that.

Any questions? Please contact us. We will be happy to help you.
