USOA

8 WINDOWS FRAME FOR USOA PANEL

Code 9710008

Model FRA-008

Serie 971

Description
8-window frame for USOA modular door panel 2-wire system. It includes an electret-type microphone with great robustness against humidity and heat.

USOA is the Alcad entrance panel with a continuous profile and modular composition. It consists of frames of different sizes and with different numbers of windows where the different modules are fitted: as main audio or video module, push-button modules, iaccess module, card holders ... etc. There are two module sizes: P and G. The G modules occupy 2 frame windows, and the P modules occupy a single window.

Its modularity allows total freedom of choice for the creation of compositions and, at the same time, facilitates the integration of all technologies in the same equipment and with the same aesthetics.

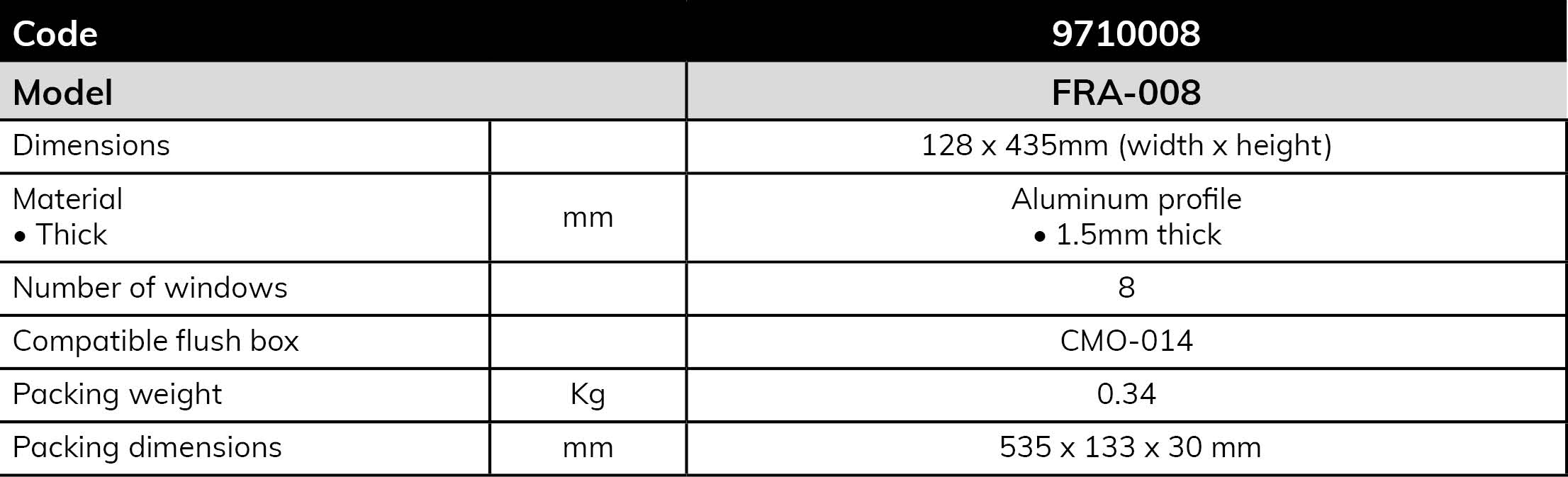

Technical specifications
