Square push-buttons
NURSE CALL BUTTON IP67 CALL,LIGHT,BLINDS
Code 9415020
Model LLC-752
Serie 941
Description:
Call handset with light and blind control, featuring a male DIN-8 connector for LLC-8xx and LLC-9xx wall bases. Easy to clean thanks to the antibacterial coating on its front panel and its IP67 protection rating. Its red Braille button makes it easy to call nursing staff. It also includes two buttons to control up to two room lights and two additional buttons for blind control; this function requires the additional relay management module included with this reference. The red LED indicates the call status and the yellow LED shows the connection status.
Downloads
Technical specification
Catalogues
Certificates

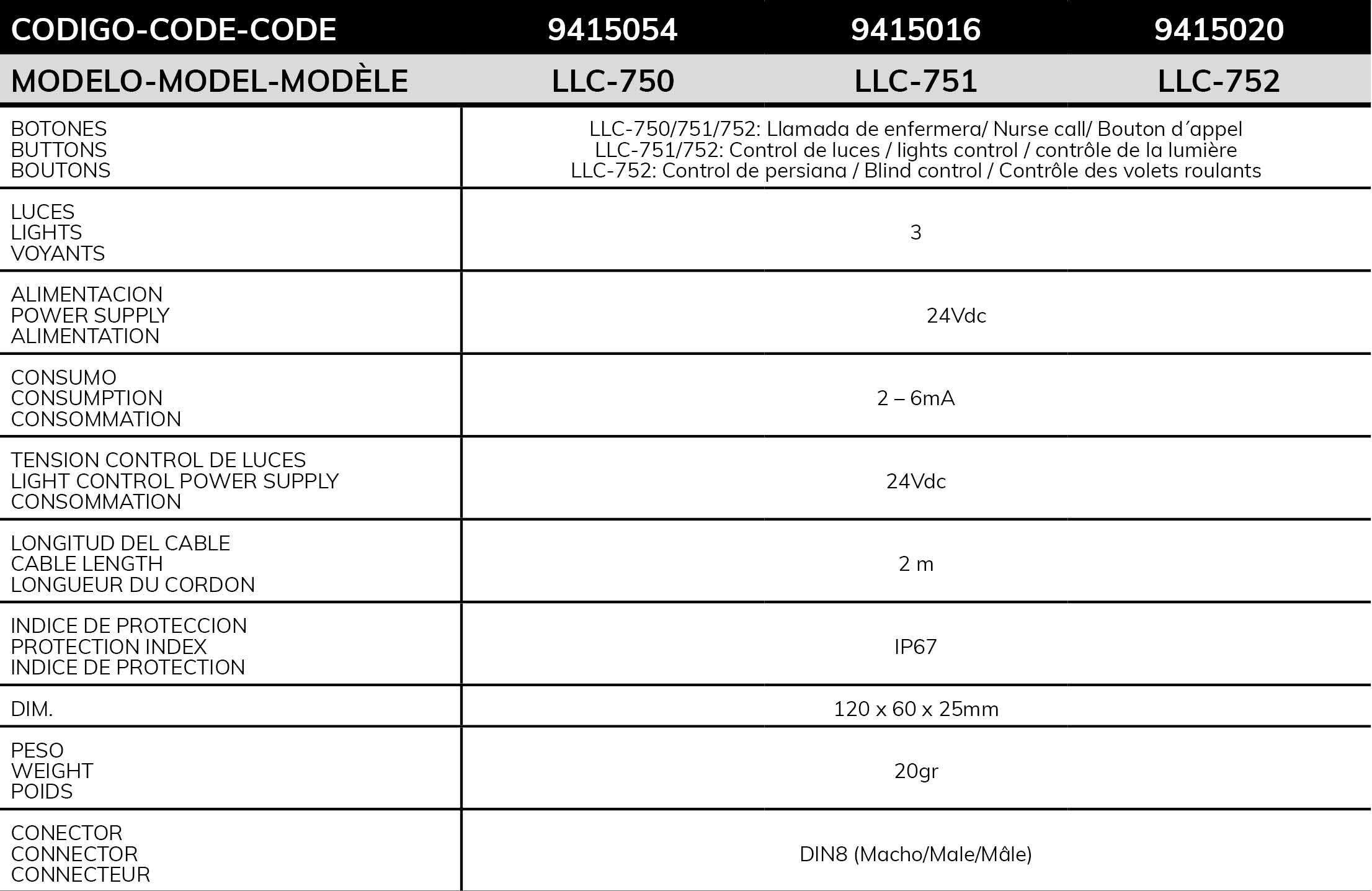

Technical specifications
