IP room terminals

IP TOUCH ROOM TERMINAL 16 IN/OUT & RS485

Code 9400012

Model CHC-240

Serie 940

Description
The IP Room Terminal is the main element of the ALCAD NURSE CALL system manager, in charge of connecting and managing the different elements of notice and signage in the room (handsets, push-buttons, pull-cords, sensors, etc.) and establishing voice communication between patients and nurses.

Applications
Designed to be available to the patient, sends information about the different events detected in the room to the assigned nursing control points (IP phones, WIFI phones, DECT phones or PCs) and it allows hands-free voice communication between patients and nurses. It also has the ability to connect wireless sensors connecting external wireless receivers and it has RS-485 serial port for connecting RFID readers to manage nurses identification control in the room and in the system.

Characterístics
Designed specifically to meet the demanding needs of durability required in hospitals, the device has a slim and robust mechanical desing that is adaptable to be mounted both in surface and recessed in wall. Thanks to its capacitive keypad it is easy to clean and its antimicrobial coating prevents possible transmission of bacteria and microbes between rooms for keyboard use by staff members. The surface of the device supports washing products typically used for disinfection in hospitals It has a backlit capacitive keypad that allows staff to launch different priority calls and document the tasks performed in the room.

It incorporates an LCD display with information on the status of the device, the events and calls occured in the room. Being based on VoIP technology and due to its connection to a data network through its RJ45 connector, it can intercommunicate with other Room Control Panels located in the same area becoming a control point when the nurse is present in the room. It incorporates an LCD display with status information of the plant, the events in the room and the calls.

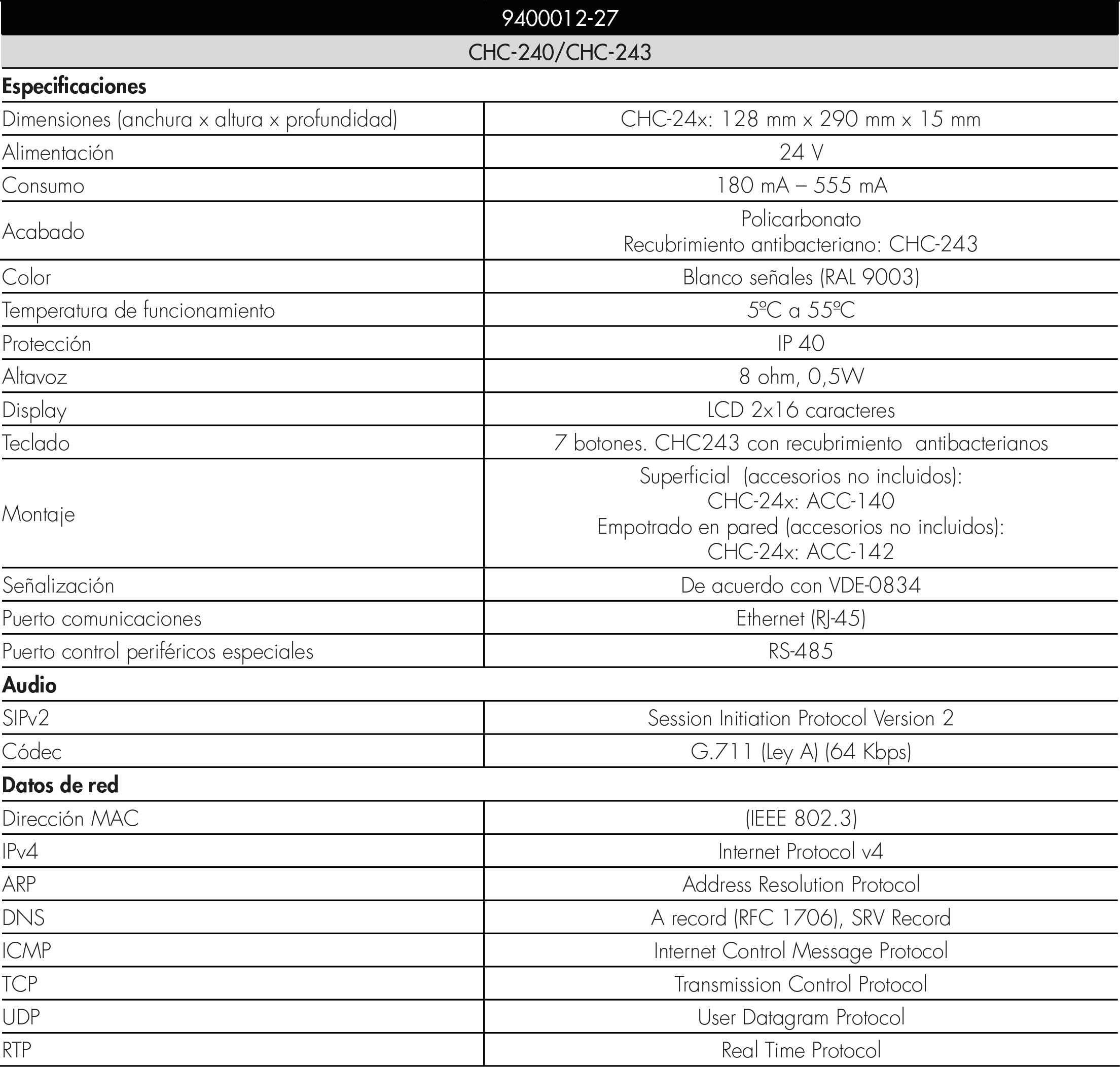

Technical specifications
