Accessories
LTE C60, TETRA & GSM REJECT FILTER 60 dB
Discontinued product
Code 9090042
Model RB-619
Serie 909
Description
Rejection filters for head-end, suppressing interfering mobile telephone signals: LTE, GSM and TETRA. Incorporates DC path to allow power to be supplied to a preamplifier. Applications Suitable for collective terrestrial TV installations which are affected y the transmission of LTE mobile telephone signals in the 790-862 MHz band, and by GSM and TETRA transmissions in the 870-960 MHz band. The filters suppresse interfering signals before amplification of the TV signals at the head-end of the installation, or between the outlet and the television so as to prevent interference from mobile devices, thereby obtaining a rejection in the LTE band of up to -60dB. Characteristics Shielded zamak chassis, metal-plated, with F-type connectors. Connectors situated at the bottom to facilitate connections. Its compact design means it can be installed in a 100 x 100 mm box.
Downloads
Technical specification
Manuals
Catalogues
Certificates

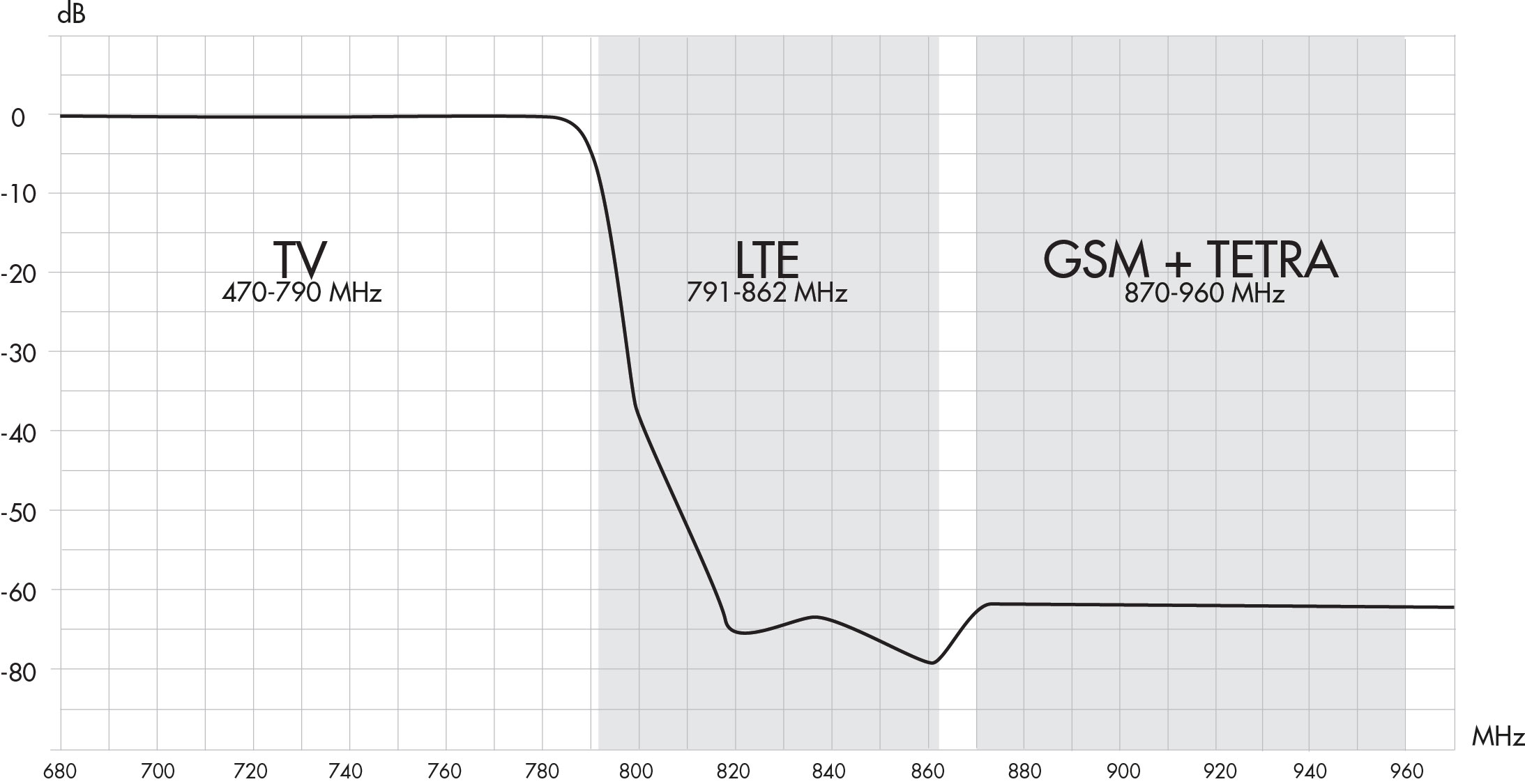

Technical specifications
![](https://alcadelectronics.com/uploads/archivos/9090042-tablaEN_a.jpg)
![](https://alcadelectronics.com/uploads/archivos/9090042-tablaEN_b.jpg)
